The C4FM Wires-X System

By accessing the local Wires-X Gateway on the dedicated system, EI2SHD, located in Lower Salthill or on the Galway Fusion Repeater, EI2TBR, it is possible to enjoy high-quality QSOs and news function including overseas stations via the Internet.

As shown above, there are numerous possibilities from a C4FM transceiver following a very simple access operation. Once initiated it is simple to navigate by following the on-screen instructions.

Using the C4FM transceiver, and accessible node can be found easily.

1) Press the "DX" key. This will send a search signal to the Wires-X Node

This will result in the Identity of the Node appearing on screen. A message "Search and Direct" will appear. Select that and then select all.

Scroll through the list of Nodes available and select the desired area. Next to the Node name in the list there will be a figure which denotes the number of Nodes connected to it. See Below

Select the Node from the list and wait for it to connect.

Once the node is connected this screen will appear

It is possible to select news items from the screen or press back to place a general call and chat through the system.

So to summarise the following operations can be performed via a Wires-X Node on a Gateway or Via a Repeater fitted with a Wires-X system.

The News facility is fairly basic but nevertheless makes it possible to leave messages or general text items for others to view. It is further possible to upload pictures on this system.

A Node to which you connect may have one or many more Nodes connected to it in a similar fashion to D-Star or DMR Reflectors. Place a call into the Node and it will come out on many other systems connected.

There is always plenty of activity on CQ-UK and, after 9 pm, many Australian stations connect into the UK Node. Normally there are over 20 Nodes connected. America-Link has a huge number of Nodes connected at any one time and would be another good place to initiate a few calls.

The local Galway Fusion Repeater has Wires-X fitted and will allow plenty of scope to use the news and messaging facility between the two stations.

The Wires-X node consists of a Yaesu FTM100D and HRi200 modem. These are interfaced to a computer which runs the Wires-X node Software.

The Node Software runs continuously on the computer. The EI2SHD node is connected into CQ-UK which is further linked to between 19 and 30 other nodes depending on the time of day. Of particular interest is the link to XRF 925A which is a bridge to D-Star. This is also linked to a "Peanut" app which is an Internet radio system.

The screen of a Wires-X node is shown below

It is from this screen that the parameters of the Wires-X node can be set up. The purple bar indicates all the Nodes connected to CQ-UK and which the system is currently connected to. There are a wealth of Nodes that one can connect to located all over the world. America link probably holds the largest collection of Nodes and usually numbers around 110 Nodes. The ALLJA-CQ-Room tends to be the next most populated. CQ-UK tends to be the best Node for semi local contacts.

EI2TBR is connected to CQ-IRELAND which links to DMR TG2724 and is a good location for the occasional EI calls. If you are reading this from outside of Ireland do give a call on TG2724 or CQ-IRELAND if you would like to get an EI contact.

The EI2GCD Mulit-Mode Gateway runs C4FM and is linked to CQ IRL via the IRL Bridge which also links to Brandmeister TG 2724.

EI2SHD the Wires-X Gateway, located in Salthill, is linked to Wires-X Node CQ-UK, This is Node is quite active both day and night.

The Map below show locations of Wires-X Nodes in Ireland. Sadly this mode is under utilised to date. There are two private Wires-X Nodes showing on the map in Donegal and Kilkenny. There is a 70cm Repeater located on Woodcock Hill, Limerick but this has no connection into the Wires-X system. Multi-Mode Digital Repeaters in the Waterford area can run C4FM and have the facility to operate on the YSF or FCS system. If Programmed to YSF-IRELAND an output on CQ-IRELAND will be possible and if Programmed to FCS-004 it is possible to exit on CQ-UK.

For a more in depth view of the Wires-X system Click >>>Here<<<< for the manual.

Read More

Reception of Digital Radio on the RTL SDR Receiver

Scanner receivers and are often limited in the areas they can receive. The availability of cheapish Baofeng radios also opened up access to areas of the spectrum but again, coverage was limited. In many cases, commercial users have either migrated to digital systems or have moved to the UHF spectrum and employed digital modes of operation in that area.
.

With this in mind, the RTL2832U + R820T2SDR was purchased as it covers a spectrum from 25 MHz to 1.7 GHz and covers 100 KHz to 30MHz. A package shown below cost only £20.00. The Hack RF SDR would be considered at a later date if initial work on the RTL SDR proved favourable.

The RTL SDR radio is wholly dependant on Software to make it function and there are many variations. There are many programs available, but SDR Sharp was the first program tried. Nowadays, the programs are almost ready to go following installation. It is important to install the USB Driver for he SDR dongle before it will function with the software. There is plenty of documentation on YouTube to assist with the set up so installation was simple.

The Broadcast band was the first area to test. The miniature antenna was sure to pick up a good range of signals to test the reception and quality. All of the parameters of the receiver are software selectable so bandwidth and gain are important for reception of wideband FM signals.

SDR Sharp was tried initially as it was easy to set up and gave good results straight away with the miniature antenna supplied. This is an excellent program for everyday use on HF, VHF and UHF. It was easy to install and once the driver program Zadig had been run, it required very little to set up.

The next area to test was the Amateur bands. The likelihood or receiving an amateur transmission on VHF or UHF can be pretty slim in Galway By removing the antenna from the SDR receiver, it was possible to receive low power transmissions from the Handheld on both VHF and UHF. Kerchunking the local repeater produced some brief signals.
.

HF reception was possible but the miniature antenna was really not sufficient to make any impact. By connecting a longer length of wire, signals started to appear. An arbitrary length of wire with 9:1 transformer would produce better results. SSB and AM signals were clear and of reasonable quality. Data Modes such as RTTY, PSK were easily received but there are probably software packages to resolve them from a SDR radio. Not really a priority.
.

Digital Radio signals were of more importance but SDR Sharp requires plugins and virtual audio cable and an additional plugin DSD. When these plugins are added in it is possible to decode a wide range of digital voice modes.

Another program, SDRangel was more complex with all of the facilities to decode digital voice signals. Provided that the USB driver has been installed, SDR Angel will work immediately after installation.

To startup, it is necessary to select the device connected, in this case, the RTL SDR, and the reception of Digital Voice transmissions is done via the DSD Demodulator.

For the purpose of initial tests, the SDR radio was set up to receive the output of the hotspot. The hotspot was able to receive DMR, D-Star and C4FM on their respective active channels.

The Screenshots for the various modes are shown below:

.

DMR operation

In the DMR mode, it may be necessary to tune slightly offset from the centre frequency to decode DMR transmissions. The audio was amazingly clear and the DMR ID appeared on the line just above the constellation graphic. It may be necessary to adjust the tuning very slightly but the waterfall display and the constellation graphic will assist.

D-Star Operation

D-Star signals were easy enough to tune. Note the Shape on the constellation graph. If centred as shown, the D-Star signal will become audible. It may be necessary to fine-tune the frequency offset very slightly to ensure that the tuning is centred. Again the signals are very clear.

C4FM Operation

C4FM signals were easy to tune and fine-tuning was facilitated by observation of the constellation graphic. Once the signal is centred, the audio became clear.

The next test will be to hook in a more resonant VHF/UHF colinear to the SDR receiver.

The SDR receiver has many uses:

Full coverage from 100KHz to 1.7GHZ with no gaps.

Broadcast Radio - Reception on HF and VHF

Decoding RDS signals

DAB Radio Reception

Scanner Receiver

Air Traffic

Marine Traffic

Public Services

Decoding Unencrypted Digital Voice - DMR, D-Star, C4FM, P25

Decoding Pager POCSAG/FLEX traffic

Reception and decoding of GPS Signals

Reception of Automatic Dependant Surveillance - Broadcast Mode -S Transponders which broadcast altitude and location information to air traffic controllers. With the appropriate software, these signals can be used to produce a "radar" like display on the computer. ADS-B receiver systems can retail for over £200.00.

"Plane plotter" is an inexpensive commercially produced application that can be used with an RTL SDR Dongle as shown below

AIS Reception of Marine traffic below:

Monitoring Meteor Scatter

Radio Astronomy

Spectrum analyser

Panadaptor to sweep the receiver I.F. showing Waterfall display of adjacent channels. Ideal for spotting activity on a quiet band. One could spend fortunes on a unit manufactured for a specific radio but despite all of the frills and facilities, the basis of the unit is an SDR receiver module.

Triangulation of transmitter locations

and so much more ........

All of the above can be performed for just £20.00. However, it is planned to get a more expensive Hack RF system which has the capability to transmit 30mW throughout its coverage up to 2 GHz. The RTL is one of the less sophisticated SDR systems available but is an excellent starting point for experimentation.

SDRangel is a little more complex with the plugins as an integral part of the program. It is not really designed for the beginner, however, there are plenty of YouTube videos describing the setup and uses of the program. It would be advisable to watch them first. Using one of the simpler SDR programs will give a good insight into SDR Radio before moving on to SDRangel.

If Digital Radio is not the primary interest, try SDR Sharp or Windows Consol V 3.0. There are many more on offer and all basically perform the same task so the choice really should be the one that suits the task. SDR Sharp is a useful program for Panadaptor use when monitoring the I.F. of a transceiver.

Read More

Radioddity GD-73A Review

Measuring a mere 115mm x 50mm x 32mm, the palm-sized Radioddity GD-73A is a fantastic little radio, ideal for operating via a household Hotspot or into a local Repeater. It is a fully functional Tier II DMR Radio running power levels of 0.5 Watts or 2 Watts.

What is in the box

The Radio comes complete with a charging/programming lead which has a standard USB plug on one end and a mini USB on the other, an earpiece with mic and PTT, Battery and USB Charger and 2600mAH Li-Ion battery pack.

The 2600mAH battery provides sufficient power to afford 16 Hours of continuous use or 48 hours on standby.

It is possible to store 1024 channels in 64 Zones containing 16 channels in each.

The stability is            +/- 1.0 ppm,

Channel Spacing        12.5 KHz

Modulation                 11K0F2E (Narrow FM)

                                      7K60FXD   12.5 KHz (Data only)

                                      7K0FXE     12.5 KHz (Data & Voice)

Vocoder                       AMBE+2TM

Modualtion BER         ≤ 5%

Analog Sensitivity      0.35uV/-116 dBM (20dB SINAD)

                                      0.22 uV/-120 dBm (Typical)

Digital Senstivity       0.3uV/-117.4 dBm (BER 1%)

                                      0.22uV/-110 dBm (BER 5%)

Power O/P                   Low 0.5 W High 2.0 W

The unit will need Firmware upgrading to V1.04 and the accompanying CPS Software. After download ensure that the Firmware upgrading software is run as "administrator". It pays to read the extended manual supplied with the software download. Much time was wasted before this was noted.

Once the Firmware is upgraded it is possible to program the radio.

The CPS is reasonably simple and conforms to other CPS software. After filling in the general settings with Callsign and DMR I/D, Enter Digital Contacts (Name and TG). Next program channels, and then create a Zone for the respective channels. It is necessary to place channels into a receive list otherwise transmission is possible but reception will not occur. Save the CPS and then load into the transceiver. SIMPLE!

Step 1

Fill in the DMR Radio Field with your call sign and the Radio I.D. with your DMR ID. Ensure that TX Time Out is set to 180 seconds as the components of the network time out beyond 3 mins (180 seconds).

Step 2

Enter Talk Groups that you wish to use. Give each on a Name and it will be a Group Call and the Call ID is the Talk Group designated number as shown below.

Step 3

Assign the Channels and their parameters by filling in the following area for each channel.

Step 4

Assign the channels to a Zone. This locates channels into one bank where they can be selected via up-down keys.

Step 5

Fill channels into Receive Group list e.g all Local channels are placed into the EI and UK Receive Group List.

That completes the programming. Bear in mind that 64 Zones may be programmed with 16 channels in each one. That is a total of 1024. This leaves plenty of scope.

Always save your Code Plug before upgrading the firmware as it may be necessary to reload after the upgrade.

Wot no Keypad? you may ask, but with channels programmed into the device already, the keyboard is seldom used. Programmable buttons P1 and P2 may be assigned to allow navigation and selection of channels in various Zones also selection of High or Low power may be programmed to these keys.

Operation through the hotspot was simple and just a case of selecting the required Zone followed by the selection of the desired channel, using the up-down keys, and then PTT to access. For use via the repeater, selection of 2 Watts is an option although in many cases it was possible to use the low power setting.

The 2600mA will give 16 hours of continuous use or 48 hours of standby time which is more than adequate for most operations.

This is a convenient lightweight handheld to slip in a pocket or bag. The GD-73A has been taken on many trips abroad and kept me in touch with Ireland. The audio out is pleasant and, with the volume turned up full, does not show any signs of distortion.

As with many DMR handhelds, there are Firmware upgrades from time to time ensuring that bug fixes and modifications are carried out.  These are carried out following consultation with users on the Radioddity pages.

Whilst not at the top end of DMR equipment, the GD-73 is more than adequate for the average requirements of any user. Good clear audio is a key factor and this radio will provide that facility. At $80 this radio will not break the bank and yet will provide hours of Service. if one is only using a hotspot why pay any more for a DMR Radio. Sadly, it does not come with a drop-in charger but the fact that it can be charged via a mobile phone charger or the laptop USB may be a plus point.

So far anyone who tried out my GD73A was impressed by the ease of operation and programming. Operation through the Repeater network in the Galway area was perfect and a good point to point QSO over 60 Km was possible using 0.5 watts with both stations almost line of sight

Read More

Phase III - Abbeyknockmoy DMR On Air

On Saturday the 16th of October EI7AKR, the Abbeyknockmoy DMR Repeater was installed on site at Knockroe, Abbeyknockmoy, Co Galway and appeared on air at 16:30.

Sadly, our previous attempt to put the Repeater on air saw a total disintegration of the 4-Stack array and therefore we were unable to switch the equipment on. Radio Structures LTD supplied us with a new antenna, under a 3-year warranty agreement, so our trip on the 26th of October was to install the replacement antenna.

On this occasion, our team consisted of Aengus, EI4ABB, who was responsible for tuning the cavities into the antenna system, Steve, EI5DD, who programmed the Repeater along with Tom, EI3ER, Joe EI3IX, and Enda EI3IS who installed the new antenna system.

This site provides the primary coverage of Co. Galway as it is located almost in the middle of the County a superb height and an excellent Radio Horizon in all directions. This will facilitate communications on all roads into and out of Galway.

The antenna system is the same as used for the previous Analog Repeater located at this site. The antenna is an RF Structures Ltd. 4-Stack Omni-directional antenna offering 6.5dBD of gain. The antennas are built to withstand the worst of weather conditions and therefore ideal for the purpose.
.

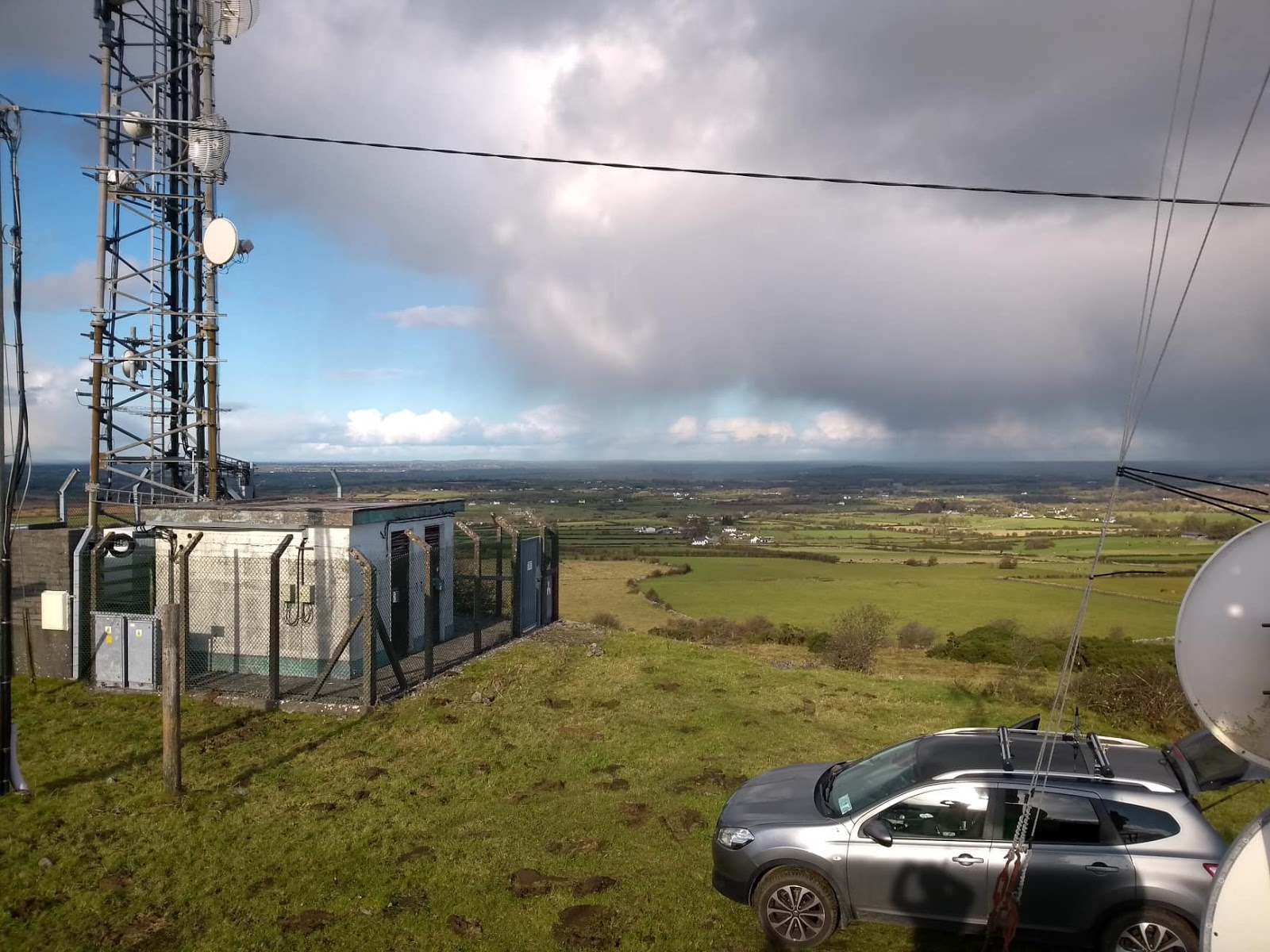

Some Excellent views towards the horizon

The new 4 Stack Omni-directional antenna is pictures above as of 26th October 2019

Aengus, EI4ABB, assisted with the installation and made sure that the Sinclair Cavity Filters matched the Antenna system. Despite perfect tuning at ground level, the impedance of the antenna is seldom exactly that of the dummy reference antenna leading to losses. Often only minor tuning was required to obtain perfection on-site into the 4-Stack array.

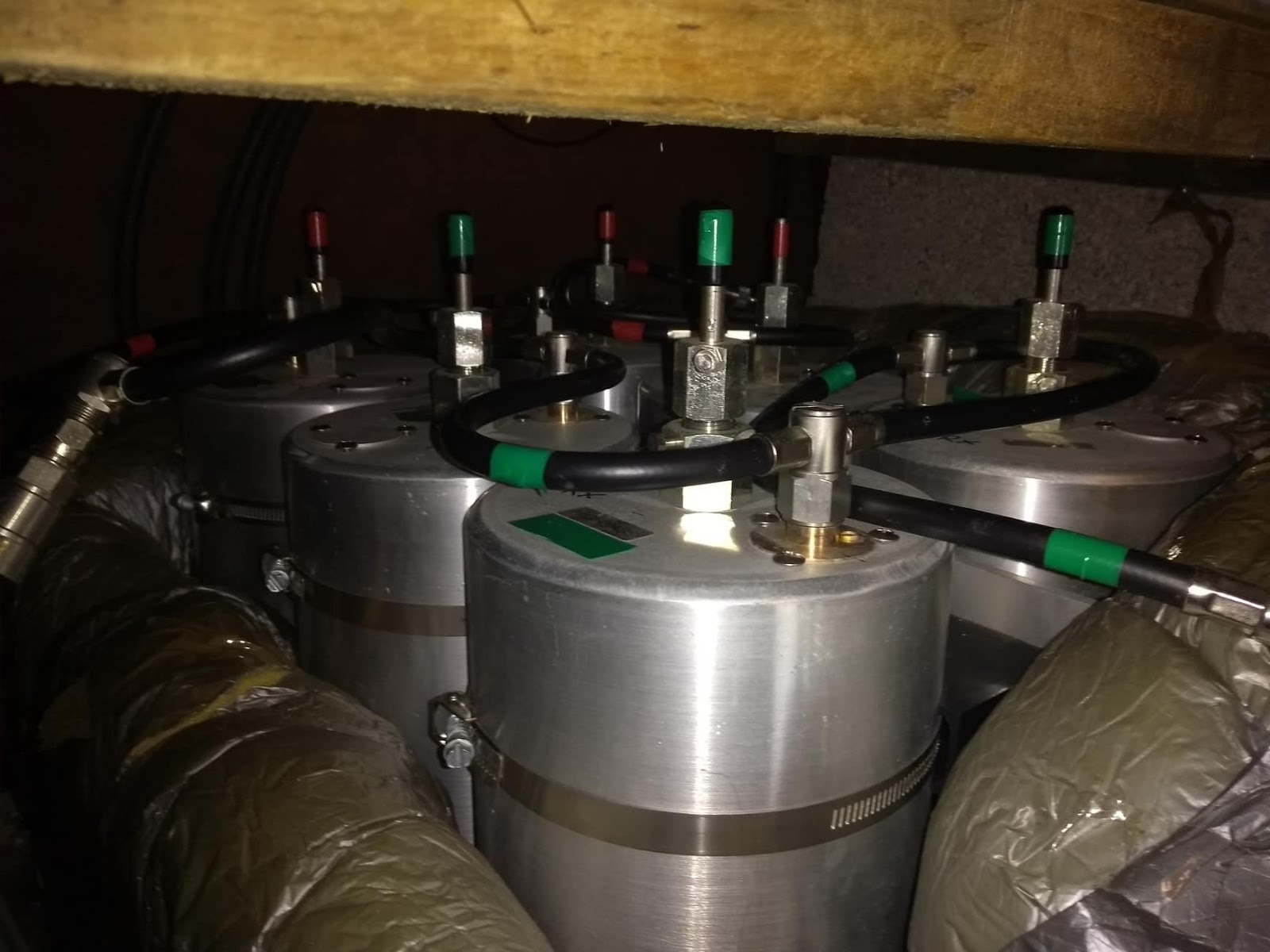

Whilst the Cavity Filters were checked, Steve, EI5DD, locked the Network settings into the DMR Repeater and ensured that the connection into the Brandmeister network had established. A quick check followed to ensure that all other settings and levels were correct.

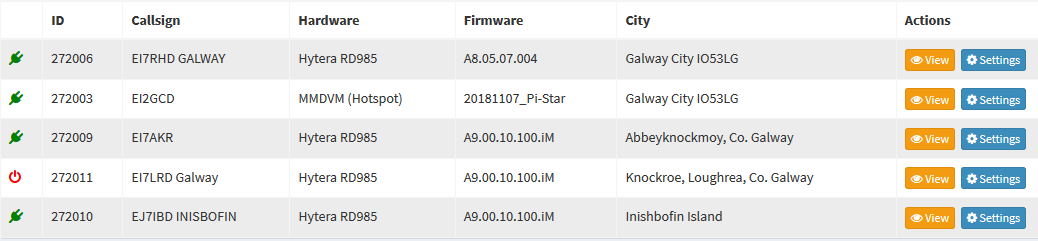

On power up the Repeater appeared on the Brandmeister Dashboard - a great sign that all is well. The power levels were then increased to 40 watts. On Re-boot, there was no indication of desense detected on the receive side. A quick tidy up of cables was performed and finally, the remote switching equipment was installed.

A scout around the shack was in order before leaving the site and to make sure that we left nothing behind as we would not be going back to that location for at least another year.

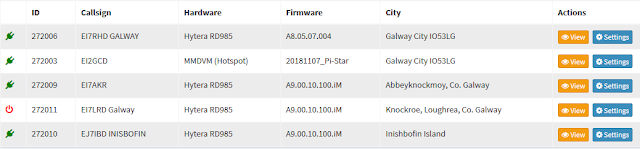

A check on the Brandmeister Dashboard revealed that all was well so we now have three out of four DMR Repeaters  and one multimode Gateway on site and operational within one year.

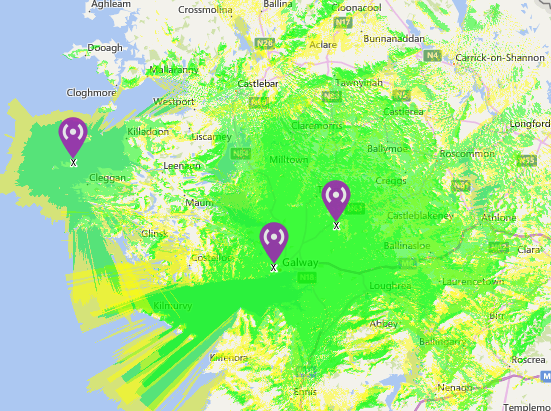

The Coverage of the Abbeyknockmoy Repeater is as shown below

Combining the Abbeyknockmoy coverage with the Inishbofin Repeater EJ7IBD, and the Galway Repeater EI7RHD it can be seen that the Network is slowly coming together.

The addition of the Loughrea Repeater EI7LRD will complete the Network. Uniform coverage with saturation of the majority of the County will be possible. This will facilitate Roaming where the user radio can switch between repeaters according to received signal strength. Should one of the Repeaters shut down, for any reason, ample but reduced coverage will still be possible.

We look forward to installing the Loughrea repeater on-site in the near future.

Read More

Catastrophe - The Best-Laid Plans of Mice and Men

With all items packed and ready to go on site to install the Repeater, it was a perfect sunny day with an excellent panoramic view in all directions from the hilltop. The gear was unloaded and installed into the hut in the site at Abbeyknockmoy. The Cavity Filters for the Repeater were given their final tune up and the Repeater was installed and connected to the network without a problem. Almost straight away the signals came through via the network. A pleasing conclusion will be found at the end of this write up.

Great we thought. Job Well Done! We placed the APRS system on air and it came to life as soon as we connected it. Better again.

And then we peered up at the antenna system. Well there were not enough swear words in the dictionary to describe the situation and none of them were repeated twice. The Repeater antenna was totally destroyed and all its components were draping down from the pole.

What was originally this:

was now this - all of the dipoles had sheared off the pole where the clamps holding them to the pole had disintegrated.

Naturally the Repeater is currently disconnected until further notice until we can replace the antenna. Hopefully Radio Structures Ltd will replace the antenna which has only been on site for 1 1/2 years.

The pole had suffered a little with the high winds and seemed to be a little bent on the bottom end where it was clamped to the pole

This was part of the clamp that held the dipole element to the pole. The others had completely disintegrated and disappeared,

This is the other part of the clamp which had litereally shattered like china.

A sad end to what could have been a really great day.

Epilogue

The Good news, however, is that a very quick respose was received from Radio Structures LTD who have offered to replace the antenna under a three year No Quibble Warranty which were were unaware of at the time. The replacement antenna was dispatched on Monday the 14th of October, just 3 days after sending an Email on Saturday.The antenna arrived in Galway on Friday the 18th of October.

Read More

New Life For The Galway Analog 70cm Repeater

Our 70cm Repeater was recently removed from its high site in Abbeyknockmoy prior to the installation of a Hytera DMR Repeater. It had been on site for some time and, whilst it proved itself to be an exceptional Repeater, very few made any effort to use it. Coverage was over a colossal distance considering that this was a UHF Repeater. One journey, from just outside of Limerick,  to Claremorris in Co. Mayo yielded a Strength 9 signal for the majority of the journey. Why nobody took an interest in this Repeater is difficult to comprehend, as it had a coverage far superior to many 2 metre repeaters around Ireland.

On Examination, Aengus, EI4ABB, noted that there was an accessory plug on the back of the repeater that would make it possible to extract raw unprocessed audio from the receive side and allow encoded audio to be transmitted. This would be perfect for a mode such as D-Star. Just by chance, Aengus had the appropriate circuitry from a project that never saw completion. The perfect opportunity to try to see if it would be compatible.

Amazingly, Aengus did not have this Repeater on his bench for more than a couple of days before the project took shape and was ready for testing. The cavity filters had recently been tuned up in preparation for use with the DMR repeater when it was to be placed on its site in Abbeyknockmoy. these worked well into his own antenna so it was possible to try out the D-Star build.

Steve, EI5DD, was working in his shack on DMR repeaters scheduled for re-location sometime in the future. A call was received from Aengus on TG 2722, for assistance with the initial tests. After disconnecting the DMR repeaters, the D-Star Radio was hooked into an antenna and the initial call was made.

Apart from a bit of feedback from equipment in Aengus's shack, the audio was very good. Obviously, this wasn't the completed project, but very promising results were achieved. The Audio was crisp, clear and stable - the system was working. Great potential for this project.

Whilst D-Star is probably the least used digital mode in the Galway area, the opportunity to experiment is available as well as for the other Digital Modes. We have multi-mode systems that also encompass D-Star operation which will cater for may forms of experimentation.

This equipment will run initially as a repeater until we register it on the D-Star network and then its full potential can be realised through the D-Star system. This is really quite remarkable progress as D-Star had only been tested in July through the multi-mode Gateway before we followed up with the acquisition of a multi-mode Repeater for Galway City in September.

The pictures below show the Kyodo 70cms Repeater gradually nearing completion with its new components for D-Star.

Finally, everything  installed and covers back on the units ready for further tests. Delighted that the Kyodo Repeater still has a function, and place in the Galway area, as it had a very sensitive receiver and the transmit otput power was more than adequate on UHF operation. As if by magic, a new Repeater was born

Subsequently, the repeater has been fitted with a set of cavity filters and is operating on RB14.

RB14 - Input: 434.950, Output: 433.350. Analog CTCSS 77hz

Special thanks to Aengus for his time and effort and we look forward to this going on a high location.
